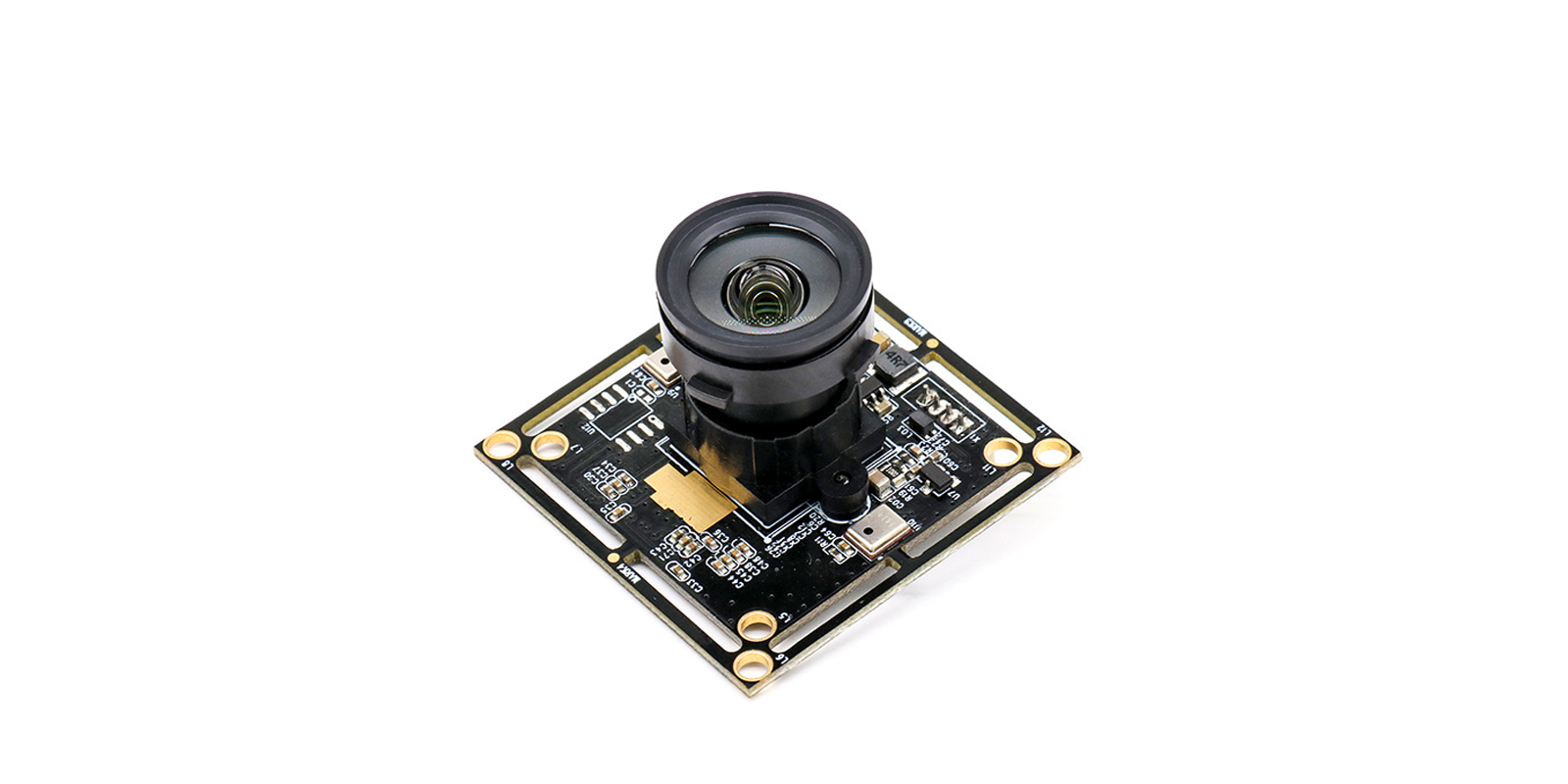

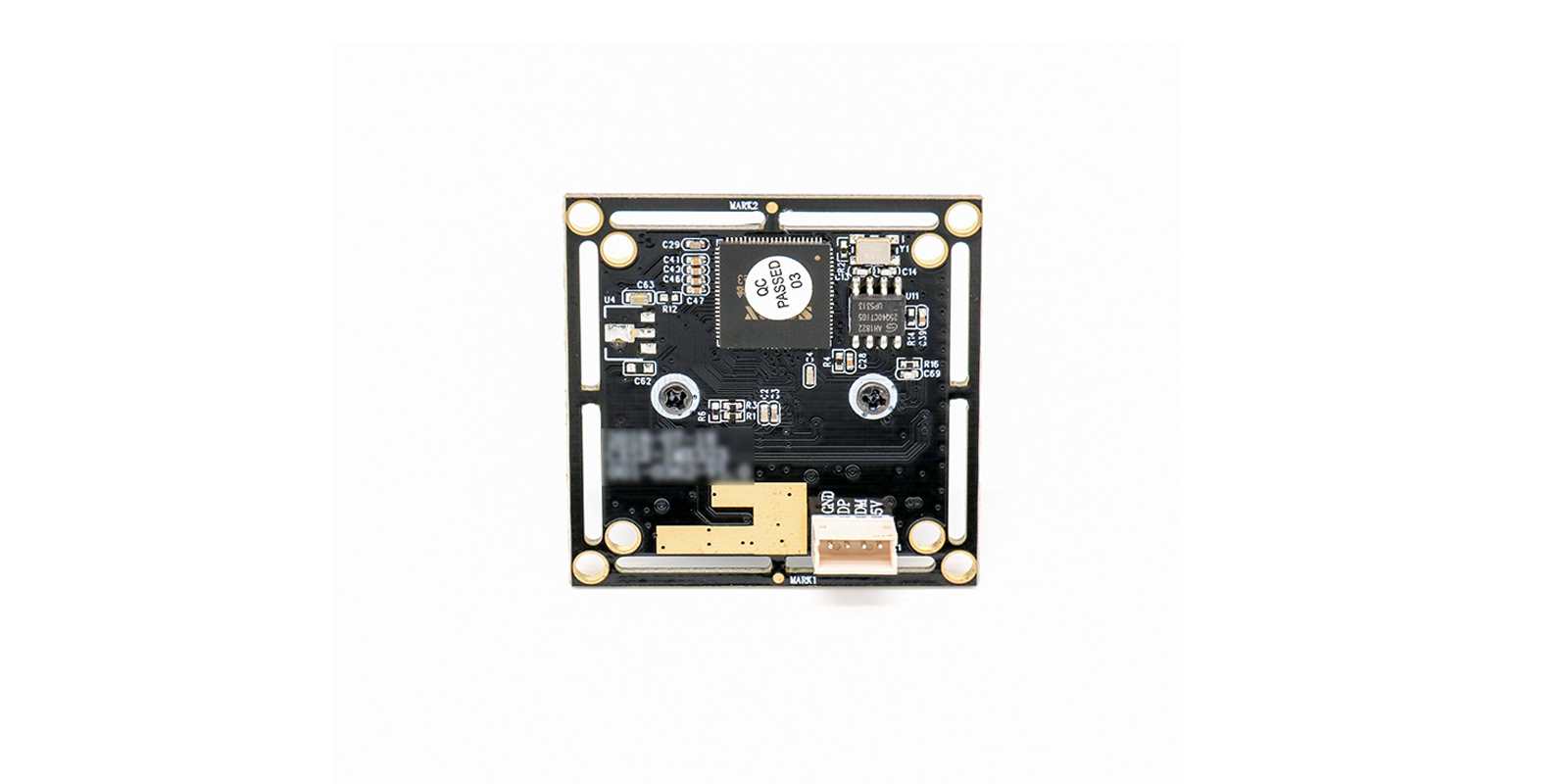

Low illumination 2MP HD camera module USB2.0 supports H.264 format
Details：
|
Items |
Parameters |
|
SENSOR |
IMX323 |
|
Lens Size |
1/2.9” |
|
Maximum Pixels |
2MP |
|
Maximum effective resolution |
2001 (H) × 1121 (V) approx. 2.24 M pixels |
|
Data Format |
YUY2/MJPG/H.264 |
|
Pixel Size |
2.8×2.8微米（µm）h（v） |
| Low illumination |
Color 0.01 Lux@F1.2, B&W 0.005 Lux@F1.2 |
|
Lens |
FOV ：D=130°，H=101°，V=65° |
|
Optical length ：21.39MM |
|
|
lens construction：4G |
|
|
mount ：M12*P0.5mm |
|
|
focusing |
Fixed focus |
|
Frame rate |
30fps |
|
auto control |
Saturation，Contrast，acutance，White balance，exposure |
|
audio |
High quality digital microphone（optional） |
|
Voltage |
DC 5V |
|
working current |
MAX 300mA |
|
USB Connector |
USB2.0 |
|
Storage Temperature |
-20°C to +70°C |
|
system compatibility |
1、Windows XP（SP2,SP3）、Vista 、7、8、10 |
|
2、Linux or OS with UVC driver |
