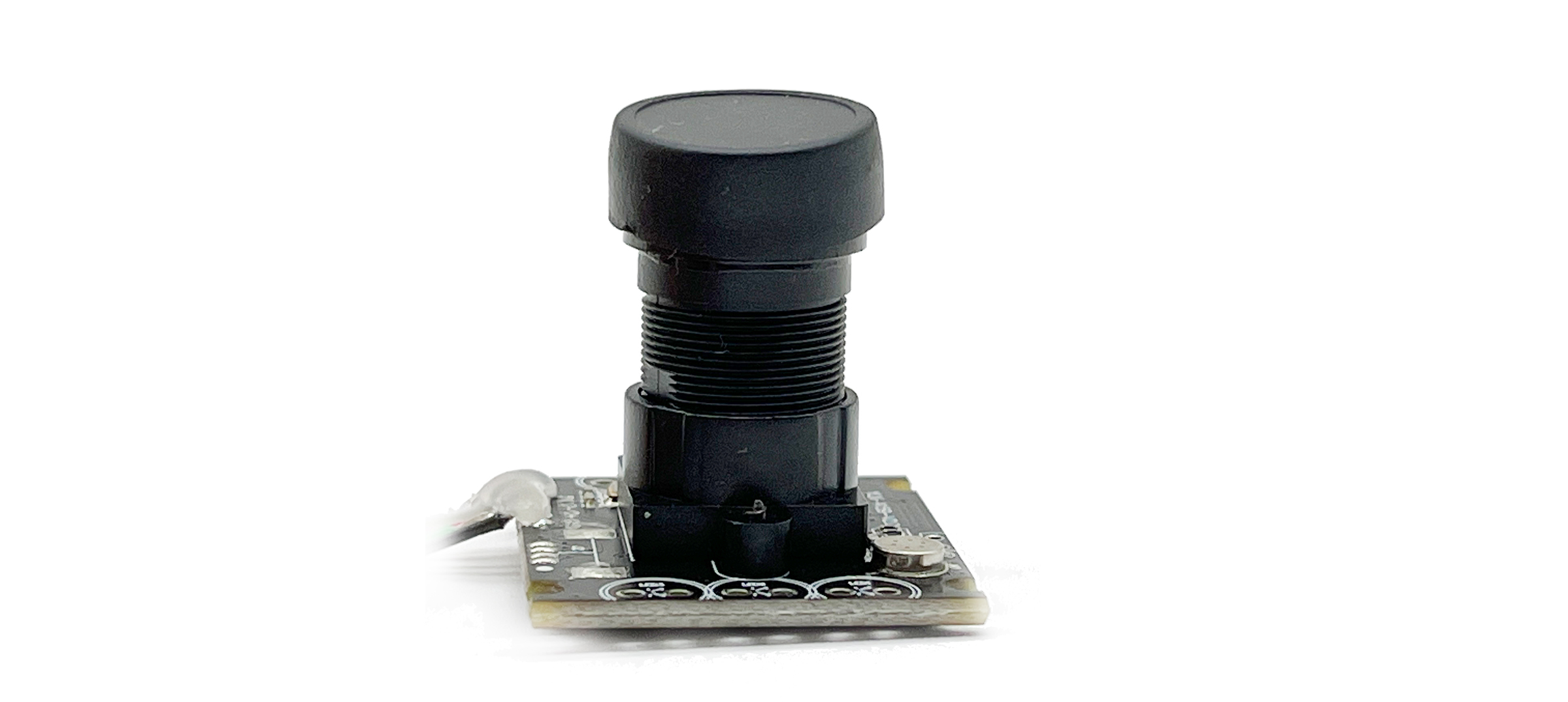

720P camera module
Details：
| Model No. |
1080P webcam |
|
CMOS |
1/2.9” |
|
Picture formate |
MJPEG / YUY2(YUYV) |
|
Suppot resolution and frame |
1280x720@ 30fps MJPEG 640x480@ 30fps MJPEG
1280x720@5fpsYUY2 640x480@ 30fpsYUY2 |
| Connector type |
USB2.0 High Speed |
| AEC | support |
| AEB |
support |
| AGC |
support |
|
Adjustable parameters |
llightness, Contrast |
|
Lens |
Size: 1/2.3, FOV:100Degree Relative Illumination (Sensor): 70% IR filter: 650±10nm |
|
Power |
USB BUS POWER 4P-2.0mm |
| Voltage |
DC5V |
|
Current |
200mA |
| Size |
50mm × 25mm |
|
Stock temprature |
-20°C to 70°C |
| Working temprature |
0°C to60°C |
|
USB cable |
1M(2M/3M/5M) |
|
Support system |
Win XP/Vista/Win7/Win8 /Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
